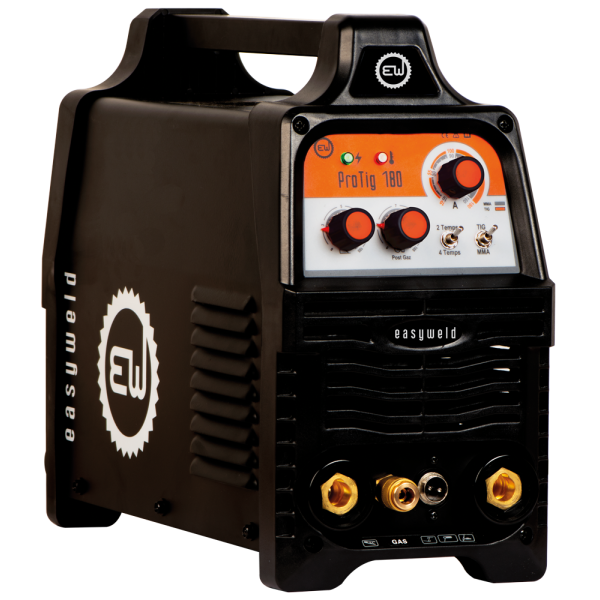

TIG INVERTER PROTIG 180 Welder
Accessoires indispensables
The PROTIG 180 is an inverter TIG welder with advanced technologies, using IGBT/MOSFET power components to transform the current frequency from 50Hz to 10KHz-100KHz. It allows the welding of steel and its alloys, stainless steel and other metals (except aluminium), with an HF system guaranteeing efficient remote ignition. It is smaller, lighter, more economical and more efficient than traditional substations, with a 30% efficiency improvement. Its affordable price and wide scope of application make it an ideal work companion for welders.
3-year warranty
Delivery in France and Europe in 24h / 48h.

Your cart will total 655 points that can be converted into a voucher of €32.75.
Product description:
The PROTIG 180 is a TIG welding device that utilizes IGBT/MOSFET power components to convert the current frequency from 50Hz to 10KHz-100KHz. This conversion results in a lower voltage, which is rectified to produce a highly efficient high-intensity current using PWM signals. The device's efficiency is increased by 30% compared to older generation stations due to the reduction in size and weight of the main transformer. This welding machine leverages the advantages of inverter welding machines, which are revolutionizing the welding industry. It can weld steel and its alloys, stainless steel, and other metals, but not aluminium. The PROTIG 180 is equipped with an HF system that ensures efficient remote ignition. It is smaller, lighter, more cost-effective, and more efficient than a traditional station. Its affordable price and wide range of applications make it an ideal tool for any welding job.
Included :
▪ WeldTig 9 4m torch.
▪ 3m ground cable.
▪ 3m electrode holder cable.
▪ Gas hose 2m.
Technical characteristics :
Feed | (1 ph) | 230 V 50/60 Hz |
power max. | KVA | 7,2 |
No-load voltage | V | 65 |
welding current | A | 10-180 |
Duty cycle (10' cycle at 40°C) | A |
|
MMA electrode diameter | mm | |
Protection sign | IP21S | |
Insulation class | F | |
Dimensions (LxlxH) | mm | 380 x 160 x 310 |
Poids | kg | 6,5 |
Data sheet
Supply current | 220 mono |
---|---|
Use | DIY |
Welding intensity | 150A-180A DC |
Cooling type | Air |
