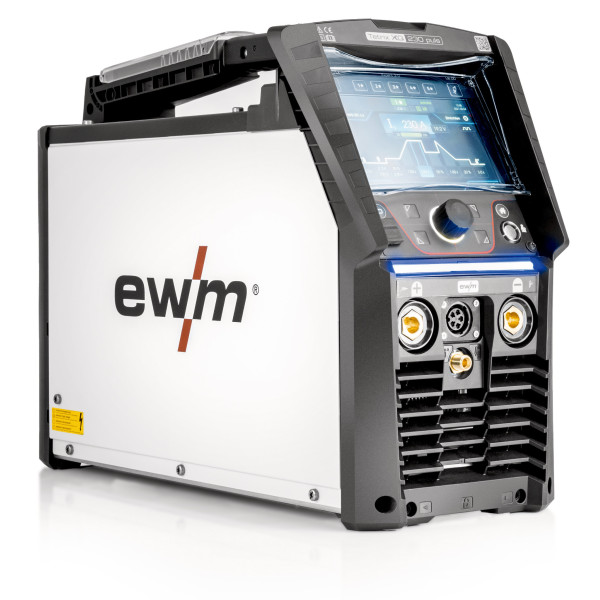

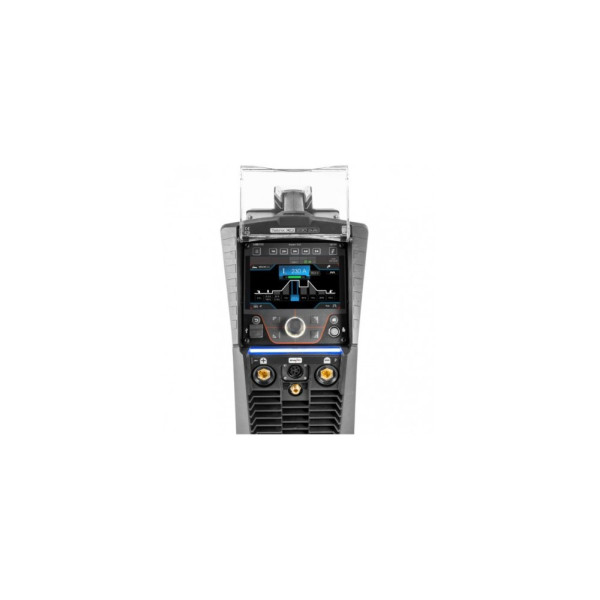

Poste à souder TIG EWM TETRIX 230 XQ DC
€4,395.00
TTC
Accessoires indispensables
Option
|
Earth clamp for Picotig 290A - 60% - 4m |
|
|
Flexible TIG Torch 150A 8m with 2 Pole Plug - Leather EWM |
|
|
|
|
|
|
|
|
|
New TETRIX XQ range for assembly, overhaul, maintenance or repair.
TIG welding is taken to the next level with the new TIG welding generator from EWM. The new TETRIX XQ series TIG welding machines perform well in a wide range of applications and materials. In addition, the TETRIC XQ is equipped with the new Expert 3.0 control system, which consists of a 7 color display that offers intuitive operation and optimum support for setting parameters.
The Tetrix XQ 230 DC is incredibly powerful and can be optionally equipped with a cooler, welding torch and a cart for transport to the construction site.
Free delivery in France and Europe 24 h/ 48 h
Add to Compare
Add to Wishlist
Get register and you will earn 4395 points/€219.75
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).
Your cart will total 4395 points that can be converted into a voucher of €219.75.
Get register and you will earn 4395 points/€219.75
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 4395 points that can be converted into a voucher of €219.75.
SAV by HD Soudage
Secure payment
Delivery in 24H
Payment in 3 or 4 instalments
Read more
Product description:
With the TETRIX XQ, the era of the new welding starts. The innovative XQ technology with Power Factor Correction (PFC) brings powerful welding technology with up to 230 A directly from a 230 V single-phase socket within your reach. For better welding results. With the new TETRIX XQ controls, you have all the options for working at the highest level, with the proven COMFORT 3.0 model or the new EXPERT 3.0. And so that you can also operate our controls perfectly with welding gloves, there is no touch screen, but an ergonomic click wheel on the EXPERT 3.0 control, of course with a menu that can be understood in your language.
Advantages:
- Newly designed handle with a storage compartment, allowing you to put wear parts for quick access.
- The TETRIX XQ is equipped with a remote control interface as standard.

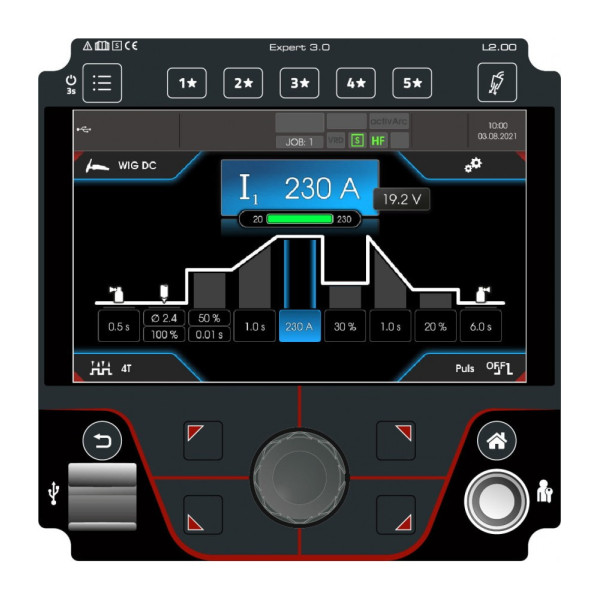

- 7" high resolution graphic display in plain text
- Five favorite keys
- Xbutton for individual access authorization
- Click wheel for comfortable handling with welding gloves
- Safe operation with push buttons (no touch screen)
- Customizable to your individual requirements
- All important functions directly accessible
- all parameters at a glance
- Color image and graphic support when setting parameters.
HD SOUDAGE review :
- A unique welding experience.
- A high resolution 7" color screen that allows you to view all parameters and flow charts.
Technical specifications:
| TIG | MMA | |
| Welding current setting range | 3 A - 230 A | 5 A - 190 A |
| Welding current/operating factor (FM) at 40 °C |
|
|
| No-load voltage | 96 V | 96 V |
| Recommended generator power. | 8,2 kVA | 8,2 kVA |
| Mains voltage / Tolerance | 1 x 230 V / -40 % à +15 % | 1 x 230 V / -40 % à +15 % |
| Connection of the torch | 5-pin or 8-pin | 5-pin or 8-pin |
| Dimensions in mm (LxWxH) | 550 x 224 x 415 mm | 550 x 224 x 415 mm |
| Weight | 17.5 Kg | 17.5 Kg |
Also available for aluminium welding: model TETRIX 230 XQ AC/DC.
090-005630-00002
2 Items
Data sheet
| Supply current | 220 mono |
|---|---|
| Use | Professional |
| Welding intensity | 200A-230A DC |
| Cooling type | Air |
