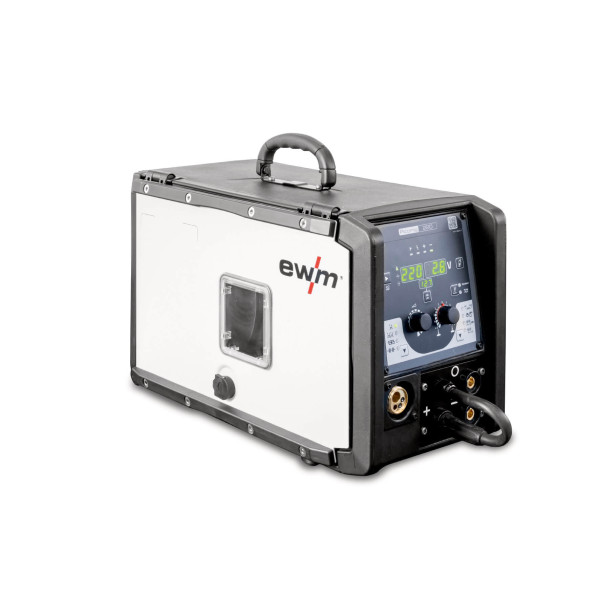

Picomig 220 Synergic TKG 5KG/D200 MIG welder
€2,544.00
TTC
MIG welder with multi-process inverter, with easy one-button control and integrated high-precision and powerful 4-roller wire feeder box for safe wire feeding of all solid and cored wires.
The Picomig 220 Synergic TKG is a compact, portable and mobile welder with an optional transport cart. It is characterized by a high no-load voltage which allows excellent ignition properties.
Wire spool diameter up to 200mm /D200.
Warranty 3 years
Free delivery everywhere in France.
Add to Compare
Add to Wishlist
Get register and you will earn 2544 points/€127.20
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).
Your cart will total 2544 points that can be converted into a voucher of €127.20.
Get register and you will earn 2544 points/€127.20
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 2544 points that can be converted into a voucher of €127.20.
SAV by HD Soudage
Secure payment
Delivery in 24H
Payment in 3 or 4 instalments
Read more
Welding processes:
- MIG/MAG
- TIG
- Stick electrode
Function :
- Infinitely adjustable arc dynamics.
- 2 cycle/ 4 cycle mode.
- Spot welding.
- Interval welding.
- Adjustable pre-gas and post-gas times.
- Optimal for welding self-shielding cored wires.
Advantages :
- No additional purchase of characteristic curves, all characteristic curves for this type of machine are supplied ex works.
- Portable or mobile with optional transport trolley.
- Wire spool diameter up to 200mm / D200.
- High open circuit voltage for excellent ignition properties.
- Power saving thanks to high efficiency and standby function.
- Simple, tool-free change of welding polarity.
- Insulated wire housing.
- Protection against splashing water IP23.
Technical characteristics :
| Welding current setting range | 5 A -220 A |
| Duty cycle at 40°C |
|
| Duty cycle at 40°C | 70 V |
| Mains voltage / Mains tolerance | 1 x 230 V (-40% à + 15%) |
| Mains frequency | 50 Hz / 60 Hz |
| Wire feed speed |
|
| Coil diameter | 5 kg / D200 |
| Protection | IP23 |
| Dimensions (LxWxH) | 559 mm x 276 mm x 340 mm |
| Weight | 18 kg |
090-005681-00502
Data sheet
| Supply current | 220 mono |
|---|---|
| Use | Professional |
| Welding intensity | 200A-220A |
| Matériau à souder | Acier carbone-Acier inoxydable |
