How to Use Welding Clamps for Perfect Alignment?
- 24 Feb, 2025
- Home
- 0 Comments

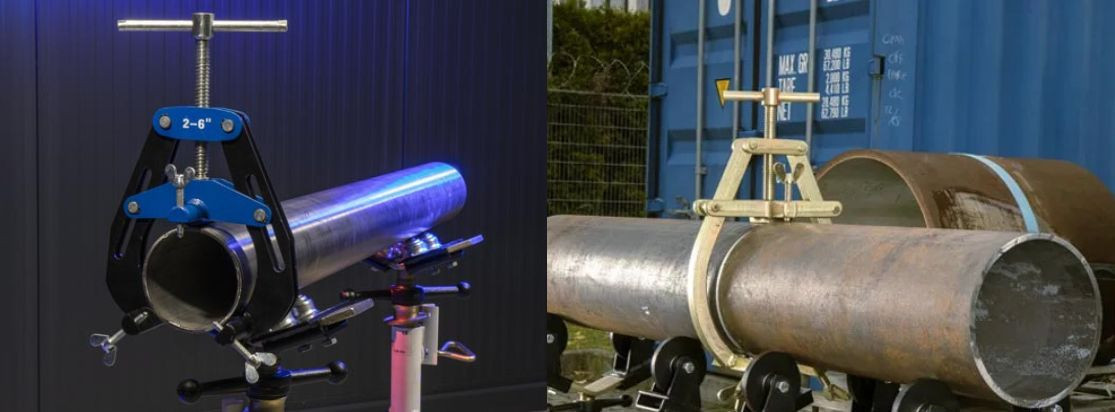

Welding clamps are essential tools for achieving high-quality welds on pipes and other metal parts. They help align and firmly hold the elements to be welded, ensuring precision and strength in the final result. In this article, we will explore in detail the optimal use of welding clamps to achieve perfectly aligned assemblies.
I. The Different Types of Welding Clamps and Their Applications
In the field of welding, the use of clamps is crucial to ensuring the stability and alignment of the parts to be assembled. These tools securely hold the elements in place, ensuring a more precise and secure weld. Depending on the type of work to be performed, the material used, and the size of the parts, different types of clamps exist, each with specific characteristics and advantages.
1. Screw Clamps
Screw clamps are among the most commonly used in the welding industry. They operate using a progressive clamping mechanism driven by a threaded screw, allowing for precise adjustment of the pressure applied to the pieces being assembled. This type of clamp is particularly valued for holding medium to large-diameter pipes where perfect alignment is required before welding. Their main advantage lies in their versatility, as they can be used in numerous welding configurations, whether for securing metal plates, holding profiles, or aligning large parts. Thanks to their powerful clamping force and precision, they minimize the risk of deformation and ensure a strong hold throughout the welding process. However, their use can be slower due to the time required to adjust and loosen the screw, which may be a disadvantage in environments requiring quick setup.
2. Lever Clamps
Lever clamps are designed for quick clamping and unclamping thanks to a toggle mechanism that allows for instant fixation of parts. Unlike screw clamps, which require precise adjustments, lever clamps are particularly suited to situations where speed is a key factor. They are often used for welding small to medium-diameter pipes as well as operations requiring frequent adjustments. This type of clamp is ideal in mass production workshops, where every second counts to optimize workflow. In addition to their speed, their ease of use is another advantage, as they do not require significant effort to operate. However, they generally provide less powerful and precise clamping than screw clamps, which may limit their use to applications where moderate clamping force is sufficient.
3. Spring Clamps
Spring clamps use the constant tension of a spring to hold parts in place. They are primarily used for temporary assemblies or welding delicate materials, such as thin sheets, which could be damaged by excessive pressure. Thanks to their ease of use, they allow for quick setup and are perfect for tasks requiring temporary holds before final clamping. Their lightweight and compact design make them a preferred choice for precision welding on sensitive parts. However, since their clamping force is relatively limited, they are not suitable for assemblies requiring a rigid and durable hold. They are often used in sheet metal work, small metal structures, or welds that require frequent repositioning.
4. Centering Clamps
Centering clamps are specifically designed to ensure perfect alignment of pipe ends before welding. They are equipped with adjustable jaws that adapt to different diameters, guaranteeing optimal centering. This type of clamp is essential in industrial sectors where welding precision is critical, such as pipeline construction, the oil, chemical, and food industries. Poor pipe alignment can lead to welding defects, leaks, and sealing issues, justifying the importance of these clamps in projects requiring precise tubular assembly. While they provide an effective solution for ensuring perfectly aligned welds, their use is more specific and less versatile than other types of clamps. Additionally, their setup may take longer, requiring careful adjustment to achieve optimal centering.
In addition to these common types of clamps, specialized models exist for more specific needs. C-clamps, for example, are used to hold flat or angled parts, while tube or chain clamps are designed to work on complex circular structures. Magnetic clamps, on the other hand, allow for the efficient holding of steel parts without using mechanical clamping mechanisms, making welding areas more accessible. Finally, angle clamps are particularly useful for assembling pieces at 90°, ensuring precise alignment of corner welds.
The choice of a welding clamp depends on several criteria, including the type of material to be welded, the size and shape of the parts, the required level of precision, and the time available for clamping. It is essential to select the appropriate tool for each application to optimize welding quality and improve work efficiency. Whether for pipe welding, metal structures, or specific assemblies, there is an ideal clamp for every situation, ensuring optimal holding and successful welding.
In stock
Welding clamps are essential tools for achieving high-quality welds on pipes and other metal parts. They help align and firmly hold the elements to be welded, ensuring precision and strength in the final result. In this article, we will explore in detail the optimal use of welding clamps to achieve perfectly aligned assemblies.
I. The Different Types of Welding Clamps and Their Applications
In the field of welding, the use of clamps is crucial to ensuring the stability and alignment of the parts to be assembled. These tools securely hold the elements in place, ensuring a more precise and secure weld. Depending on the type of work to be performed, the material used, and the size of the parts, different types of clamps exist, each with specific characteristics and advantages.
1. Screw Clamps
Screw clamps are among the most commonly used in the welding industry. They operate using a progressive clamping mechanism driven by a threaded screw, allowing for precise adjustment of the pressure applied to the pieces being assembled. This type of clamp is particularly valued for holding medium to large-diameter pipes where perfect alignment is required before welding. Their main advantage lies in their versatility, as they can be used in numerous welding configurations, whether for securing metal plates, holding profiles, or aligning large parts. Thanks to their powerful clamping force and precision, they minimize the risk of deformation and ensure a strong hold throughout the welding process. However, their use can be slower due to the time required to adjust and loosen the screw, which may be a disadvantage in environments requiring quick setup.
2. Lever Clamps
Lever clamps are designed for quick clamping and unclamping thanks to a toggle mechanism that allows for instant fixation of parts. Unlike screw clamps, which require precise adjustments, lever clamps are particularly suited to situations where speed is a key factor. They are often used for welding small to medium-diameter pipes as well as operations requiring frequent adjustments. This type of clamp is ideal in mass production workshops, where every second counts to optimize workflow. In addition to their speed, their ease of use is another advantage, as they do not require significant effort to operate. However, they generally provide less powerful and precise clamping than screw clamps, which may limit their use to applications where moderate clamping force is sufficient.
3. Spring Clamps
Spring clamps use the constant tension of a spring to hold parts in place. They are primarily used for temporary assemblies or welding delicate materials, such as thin sheets, which could be damaged by excessive pressure. Thanks to their ease of use, they allow for quick setup and are perfect for tasks requiring temporary holds before final clamping. Their lightweight and compact design make them a preferred choice for precision welding on sensitive parts. However, since their clamping force is relatively limited, they are not suitable for assemblies requiring a rigid and durable hold. They are often used in sheet metal work, small metal structures, or welds that require frequent repositioning.
4. Centering Clamps
Centering clamps are specifically designed to ensure perfect alignment of pipe ends before welding. They are equipped with adjustable jaws that adapt to different diameters, guaranteeing optimal centering. This type of clamp is essential in industrial sectors where welding precision is critical, such as pipeline construction, the oil, chemical, and food industries. Poor pipe alignment can lead to welding defects, leaks, and sealing issues, justifying the importance of these clamps in projects requiring precise tubular assembly. While they provide an effective solution for ensuring perfectly aligned welds, their use is more specific and less versatile than other types of clamps. Additionally, their setup may take longer, requiring careful adjustment to achieve optimal centering.
In addition to these common types of clamps, specialized models exist for more specific needs. C-clamps, for example, are used to hold flat or angled parts, while tube or chain clamps are designed to work on complex circular structures. Magnetic clamps, on the other hand, allow for the efficient holding of steel parts without using mechanical clamping mechanisms, making welding areas more accessible. Finally, angle clamps are particularly useful for assembling pieces at 90°, ensuring precise alignment of corner welds.
The choice of a welding clamp depends on several criteria, including the type of material to be welded, the size and shape of the parts, the required level of precision, and the time available for clamping. It is essential to select the appropriate tool for each application to optimize welding quality and improve work efficiency. Whether for pipe welding, metal structures, or specific assemblies, there is an ideal clamp for every situation, ensuring optimal holding and successful welding.
III. Optimizing the Use of Clamps for Different Types of Welding
Welding clamps are essential tools for ensuring precise alignment and secure fixation of the parts to be welded. Depending on the type of weld, it is crucial to choose the right type of clamp to achieve a high-quality result, avoid assembly defects, and improve work efficiency. Here are some recommendations tailored to different welding situations.
1. Butt Welds
Butt welds require absolute precision to ensure a perfectly aligned joint between the parts, especially when dealing with pipes or metal plates. To achieve this optimal alignment, the use of centering clamps is essential. These clamps keep the ends of the elements stable and firmly in place, reducing the risk of welding defects such as misalignments or uneven penetration.
Additionally, standard clamps placed on each side of the joint ensure a firm hold throughout the welding process. This minimizes vibrations and misalignments, ensuring a uniform fusion between the pieces. Using these tools also optimizes productivity by reducing the time spent on adjustments before and during the welding operation.
2. Corner Welds
Corner welds require precise fixation to prevent slipping or incorrect orientation of the parts. In this context, it is recommended to combine right-angle clamps with standard clamps to stabilize the elements and achieve a perfect positioning.
One of the major challenges of corner welds is ensuring that the workspace remains clear to allow optimal access for the welding torch. To achieve this, clamps should be strategically positioned so they do not obstruct access to the fusion zones. The use of a template or guide can also be helpful in maintaining a precise and consistent angle throughout the process.
3. Circular Welds
Circular welds, particularly on flanges, fittings, or tubes, require uniform clamping around the entire circumference to ensure consistent alignment. The use of clamps specifically designed for circular assemblies is essential to maintain regularity and avoid irregularities in the weld bead.
Some circular clamp models are adjustable, allowing for balanced pressure around the entire perimeter of the piece, which is particularly useful in preventing deformations. In tube assemblies, it is recommended to use clamps with automatic centering systems to facilitate positioning and reduce preparation time.
4. Thin Sheet Welding
Welding thin sheets presents a particular challenge due to the high risk of deformation from heat and pressure. To prevent these issues, it is best to use spring clamps or adjustable pressure clamps, which provide effective holding without applying excessive force on the material.
In some cases, adding support plates beneath the welding area can help distribute the pressure exerted by the clamps, minimizing the risks of warping or thermal deformation. Another precaution is to weld alternately in different areas of the piece to limit heat buildup and ensure better overall stability.
IV. Maintenance and Safety of Welding Clamps
To ensure the longevity and efficiency of your welding clamps, follow these maintenance and safety recommendations:
- Regular Cleaning: After each use, thoroughly clean your clamps to remove welding residues, dust, and debris. Regular cleaning prevents premature wear and ensures optimal performance.
- Lubrication: Periodically apply a suitable lubricant to the moving parts of the clamps, such as screws and clamping mechanisms. This practice reduces friction and extends the lifespan of the tools.
- Visual Inspection: Before each use, inspect your clamps for any signs of wear, deformation, or damage. Immediately replace any defective clamp to avoid accidents.
- Proper Storage: Store your clamps in a dry place away from moisture to prevent corrosion. Use dedicated storage racks or boxes to avoid shocks and deformations.
- Use of Gloves: Always wear protective gloves when handling clamps, especially after welding, as they can become extremely hot.
- Respect Load Limits: Never exceed the maximum load capacity indicated for each clamp. Overloading can lead to tool failure and compromise safety.
By following these tips and techniques, you will be able to use welding clamps effectively to achieve perfect alignments and high-quality welds. Mastering these tools is a valuable asset for any welder, whether a professional or an enthusiastic amateur.
Remember that practice and experience are the best allies for perfecting your technique in using welding clamps. Experiment with different types of clamps and configurations to find the best solutions for your specific projects.
